Basic Specs of the MBM Triumph 4815 Paper Cutter
Cutting Width | 18 5/8" |
Cutting Height | 3" |
Narrow Cut | 1" |
Cutting Mode | Semi-Automatic |
Workflow | |
Overall Features |
Features of the MBM Triumph 4815 Paper Cutter
- Semi-automatic cutter
- 18 inches table depth
- Extra large cut lever requires minimal effort
- Patented, lever-activated, fast-action clamp tightly holds paper stock
- Side guide with measuring scale
- Spindle-guided back gauge with calibrated crank and measuring scale
- Strong Soligen steel blade
- All-metal construction
- Solid steel blade carrier and adjustable blade guides
- Comprehensive "SCS" safety features included
- Customer Favorite
*Side Table not included

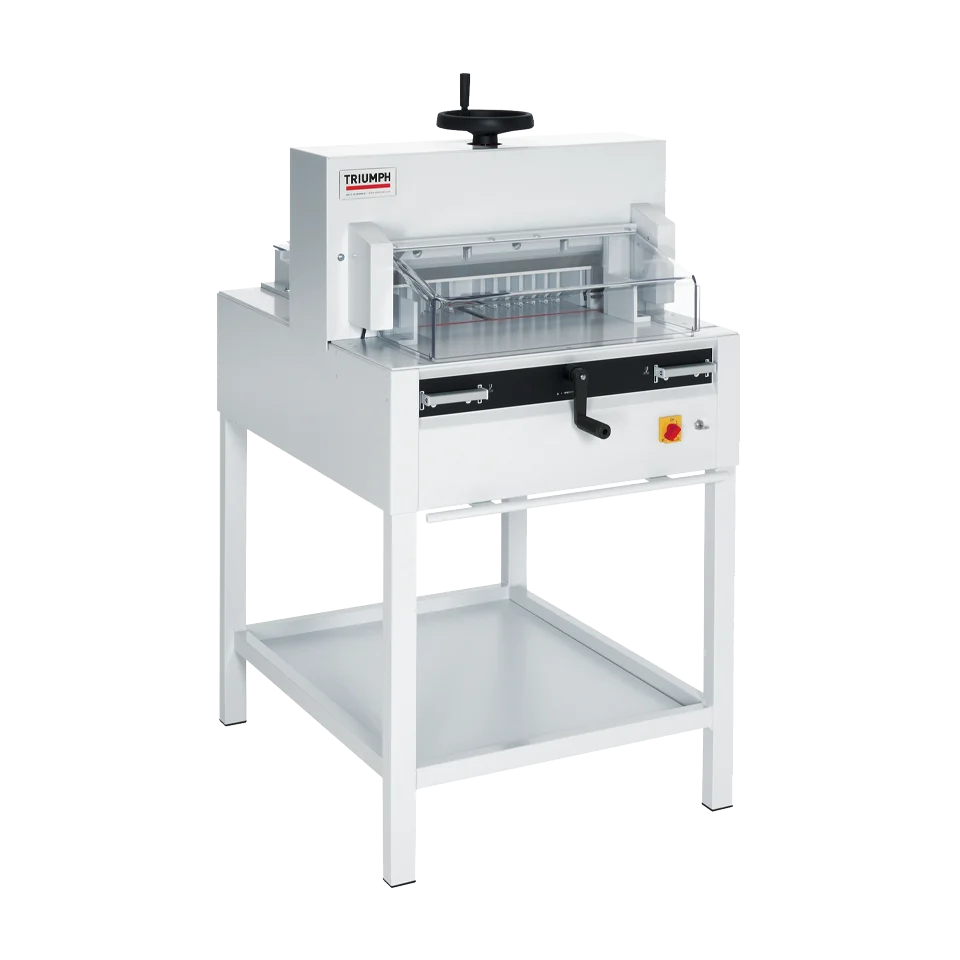

Description of the MBM Triumph 4815 Paper Cutter

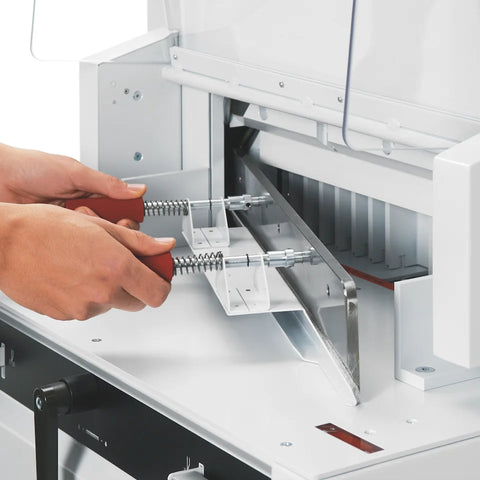

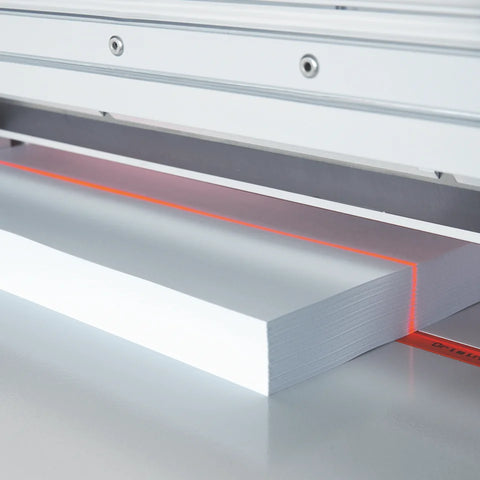

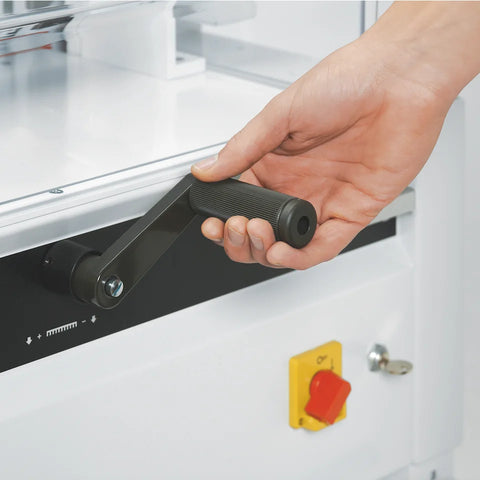

The semi automatic Triumph 4815 cutter features a practical design and easy to use controls. Cuts are made using the patented “Easy Cut” activating bars. These bars allow the blade and the clamp to be operated independently and require two handed operation. The backgauge is spindle guided and can be set using a convenient hand crank. Precise positioning can be achieved using the front table digital readout. There is even a red LED cutting line for an even more accurate cut.
The Safety Cutting System (SCS) on the Triumph 4815 is designed to protect the operator during use but also while performing routine maintenance such as changing the blade. The SCS includes a front safety guard that’s electronically controlled, there’s also a transparent rear table cover. It also features automatic blade return from any position and a disc brake for instant blade stop. The blade itself is German made of solid steel. Blade depth can be easily readjusted from outside the machine. The blade can be easily removed or replaced with the convenient blade changing device which protects the user by covering the cutting edge. All the tools needed for changing the blade or performing maintenance can be found stored in a handy tool holder on the rear of the machine so they are always readily available. The well made Triumph 4815 features all metal construction and comes complete with a stand and storage shelf.
Video of the MBM Triumph 4815 Paper Cutter
Full Specs of the MBM Triumph 4815 Paper Cutter
Manufacturer Name | MBM |
Model Number | 4815 |
SKU | MBM4815-0418 |
Cutting Width | 18 5/8" |
Cutting Height | 3" |
Narrow Cut | 1" |
Cutting Length Behind Blade | 18" |
Table Length in Front of Blade | 13 5/8" |
Cutting Mode | Semi-Automatic |
Clamp | Manual |
Blade Construction | Solingen Steel |
Back Gauge Adjustment | Manual |
Motor | 1.5 HP |
Voltage | 115 Volts; other voltages available |
Safety Mechanism | Safety Shields; Disc Brake |
Optical Cutting Line | Yes |
Readout | Digital |
Dimensions (D x W x H) | 41 1/2" x 30" x 55 1/2" (53 W with side tables) |
Weight | 468 lbs |
Shipping Dimensions (L x W x H) | 41 1/2" x 30" x 55 1/2" |
Shipping Weight | 531 lbs (552 lbs with side tables) |
